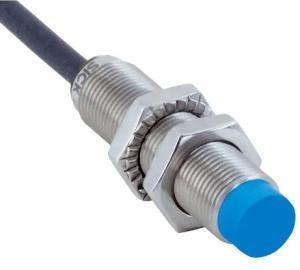

The SICK IMB12-08NNSVU2S inductive proximity sensor delivers exceptional precision in detecting metal objects across diverse industrial applications. With an 8 mm sensing range optimized for non-flush mounting, it accurately identifies targets without physical contact, ensuring reliable performance in high-speed conveyor systems, robotic arms, and material handling equipment . Its advanced ASIC technology enhances signal stability, reducing false triggers and improving process efficiency. The sensor’s fast response time (≤ 0.5 ms) and high switching frequency (2 kHz) enable real-time object detection, making it ideal for applications requiring rapid cycle times. The NPN normally open (NO) output provides seamless integration with PLCs and control systems, while the robust stainless steel housing (IP68/IP69K) ensures durability in harsh environments, including exposure to dust, moisture, and extreme temperatures .
Built to withstand demanding conditions, the IMB12-08NNSVU2S features a corrosion-resistant stainless steel V2A housing and a plastic LCP sensing face, ensuring long-term reliability in challenging settings. Its IP68/IP69K protection rating allows operation in wet, dusty, or chemically aggressive environments, such as automotive manufacturing, food processing, and outdoor machinery . The sensor’s wide operating temperature range (–40°C to +100°C) and resistance to shock and vibration further enhance its suitability for extreme industrial environments. Additionally, integrated protection circuits safeguard against reverse voltage, short-circuits, and overloads, minimizing downtime and maintenance costs. The sensor’s compact M12 threaded design simplifies installation, while self-locking nuts and an optical adjustment indicator streamline setup .
The IMB12-08NNSVU2S offers flexible integration options, including a 4-pin M12 connector for easy plug-and-play installation. Its IO-Link compatibility enables bidirectional communication, allowing users to remotely configure parameters, monitor diagnostics, and perform predictive maintenance, reducing manual adjustments and improving system efficiency . The sensor’s non-flush mounting design and wide sensing range make it suitable for detecting objects of varying sizes and materials, while its high switching frequency supports high-speed automation processes. Whether used in standalone systems or networked industrial networks, the IMB12-08NNSVU2S provides a cost-effective solution for precise object detection, contributing to enhanced productivity and reduced operational risks.
| Attribute | Detail |
| Model | IMB12-08NNSVU2S |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Distance | 8 mm (non-flush mounting) |
| Output Type | NPN Normally Open (NO) |
| Supply Voltage | 10–30 V DC |
| Current Consumption | ≤ 10 mA |
| Switching Frequency | 2 kHz |
| Connection Type | 4-pin M12 connector (cable length: 2 m) |
| Housing Material | Stainless Steel V2A (IP68/IP69K protection) |
| Optical Element | Plastic LCP (sensing face) |
| Mounting | M12 threaded cylindrical housing |
| Operating Temperature | –40°C to +100°C |
| Protection Features | Reverse polarity, short-circuit, and overload protection |
| IO-Link Compatibility | Yes (via 4-pin M12 connector) |
| Weight | 0.080 kg |
| Dimensions | M12x50 mm (housing: 65 mm; thread: 43 mm) |
| Accessories | 2 self-locking nuts with locking teeth |
| RoHS Compliance | Yes |
| Repeatability | ≤ ±10% of sensing distance |
| Hysteresis | ≤ 10% of sensing distance |
| Response Time | ≤ 0.5 ms |
| Electromagnetic Compatibility | Compliant with EN 61000-6-2/6-3 standards |
